Lateral Cephalometric Landmarks

POST /ceph-lateral-points

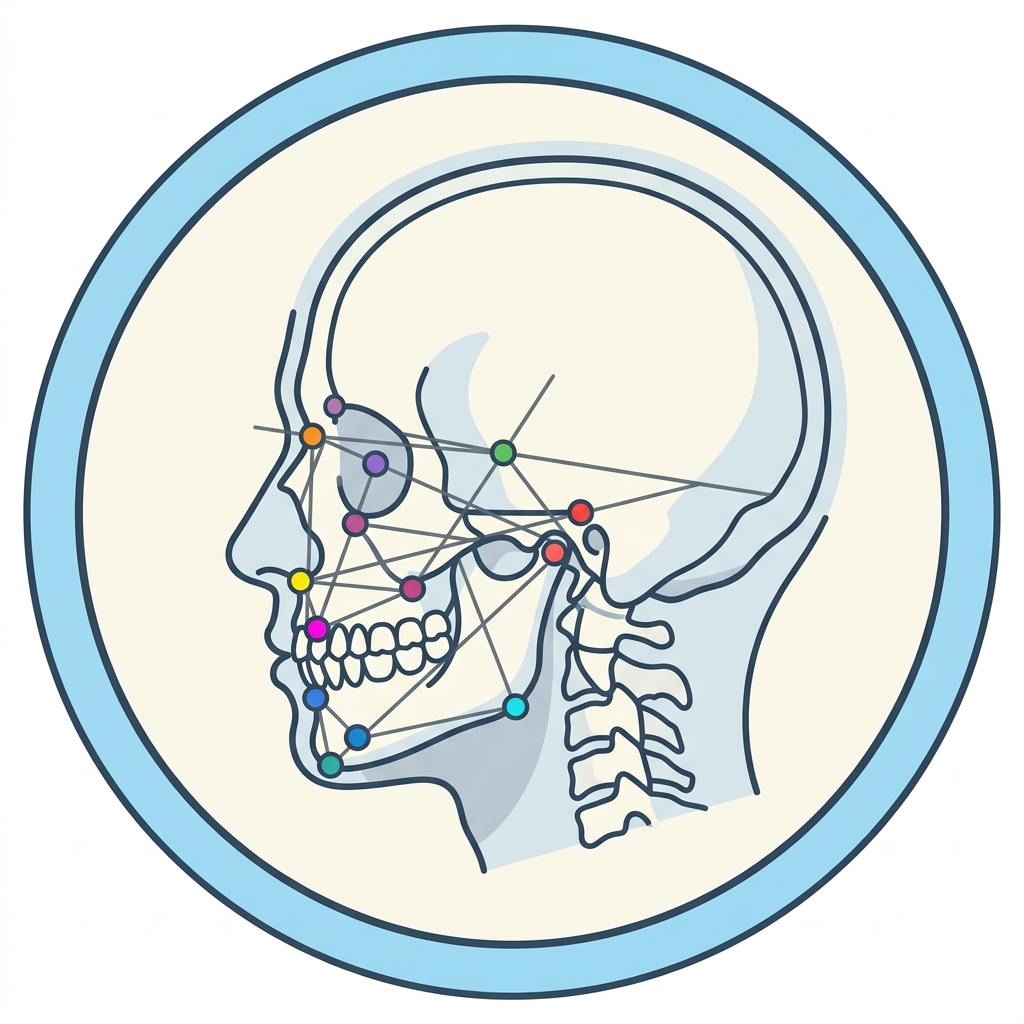

Detects 169 cephalometric landmarks on lateral cephalometric X-ray images for orthodontic and skeletal analysis.

Image Type: Lateral Cephalometric Radiograph | Tags: 169 Landmarks Lateral Ceph X-ray AI

Request Parameters

Parameter	Type	Required	Description
PatientID	string	✅	Unique patient identifier
TimeStamp	string	✅	Analysis session timestamp
ImageName	string	✅	Full URL to the image

Example Request

curl -X POST \
  https://api.annie-insights.com/api/v2/ceph-lateral-points \
  -H "Content-Type: application/json" \
  -H "x-api-key: YOUR_API_KEY" \
  -d '{"PatientID":"P-001","TimeStamp":"2026-05-24","ImageName":"https://example.com/lateral.jpg"}'

Sample Response

{
  "Version": "2024.1.0",
  "PatientID": "P-001",
  "NumberOfPredictedPoints": 169,
  "Results": {
    "Later_103": {"x_coordinate": 760, "y_coordinate": 549},
    "Later_25": {"x_coordinate": 813, "y_coordinate": 530},
    "Later_52": {"x_coordinate": 436, "y_coordinate": 644}
  },
  "OutputImageUrl": "https://annieapistorage.blob.core.windows.net/..."
}
